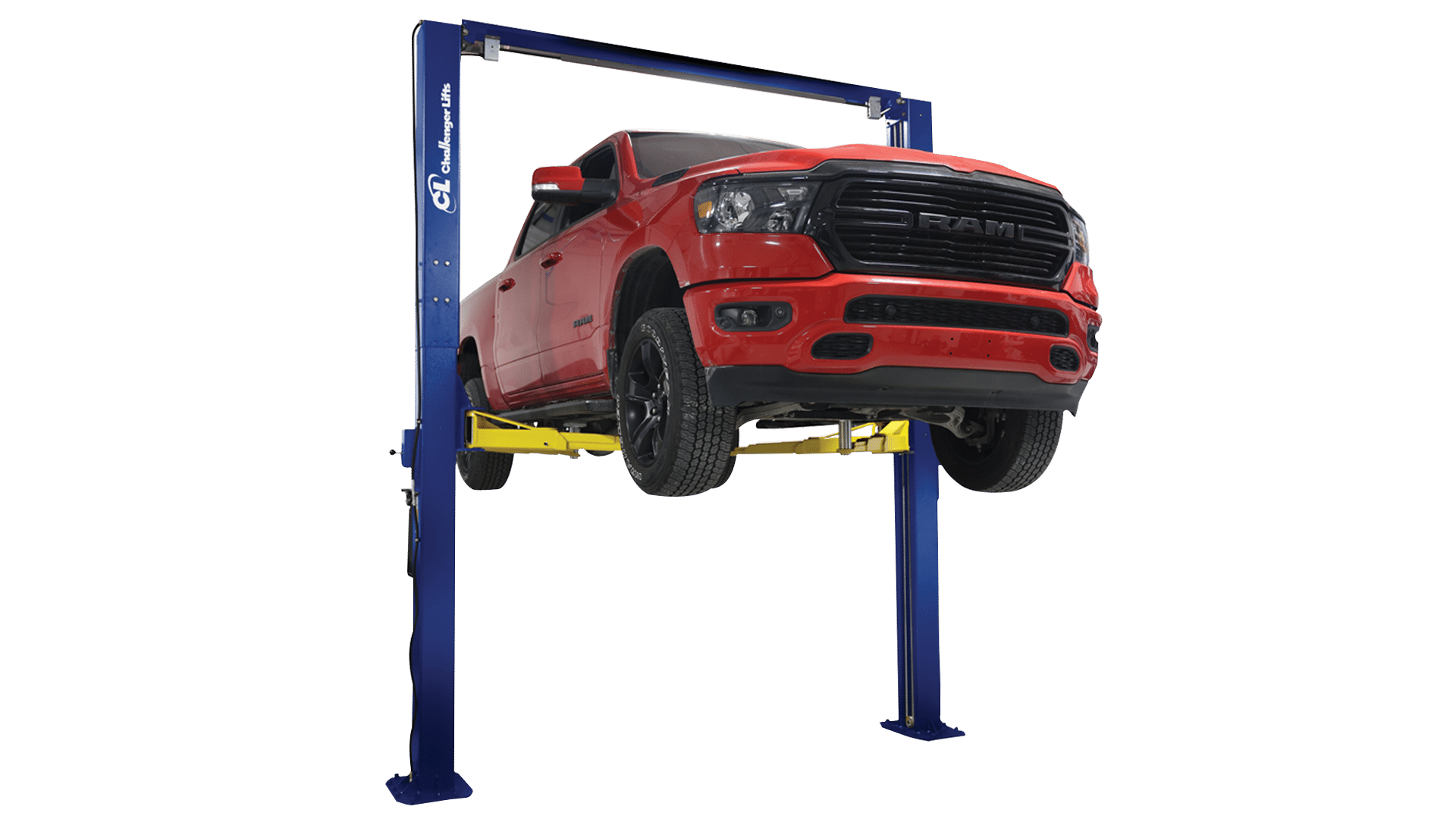

Challenger LE12-3S 2-Post Lift

$8,992.82

Description:

Challenger Lifts LE12-3S is the perfect economic 2-post lift for servicing trucks and other vehicles up to 12,000 lbs. Heavy-duty 3-stage front and 3-stage rear arms offer symmetric lifting capability. Also, adjustable column height accommodates higher profile vehicles while providing ample servicing headroom. The LE12-3S comes standard with stack adapters. Accommodate higher profile vehicles with optional 2 foot column extensions.

ALI/ETL certified.

Features:

  • 12,000 lb. lift capacity
  • 3-stage arms enable a wide range of symmetric lifting that includes vehicles from heavy-duty trucks to small passenger sedans, within rated capacity
  • Single point mechanical lock release allows technician to disengage both columns simultaneously
  • Heavy-duty polyurethane screw pads accommodate a wide range of recommended lifting points
  • Adjustable column height accommodates higher profile vehicles and provides maximum headroom to work underneath vehicles
  • Padded overhead shut off system prevents vehicle damage
  • Powder coat finish provides long-lasting durability
  • Plated arm restraints and arm pins inhibit rust and provide long-lasting durability
  • Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage

Specifications:

Model Number LE12-3S
Lifting Capacity 12,000 lbs.
Arms 3-stage front/3-stage rear
Lifting Configuration Symmetric
Rise Height 77.75”
Overall Height 166”/175”
2’ Height Extension Available Yes
Overall Width 139.75”
Drive-Thru Clearance 103”
Floor to Overhead Switch 159.5”/168.5”
Minimum Arm Reach 27.5”
Maximum Arm Reach 54.5”
Screw Pad Height 5.25”-6.75”
Inside Columns 115”
Ceiling Height Required 167”/176”
Motor / Voltage 2HP, 208v - 230v
Speed of Rise 61 s
ALI/ETL Certified Yes
Colors Available Red, Blue
