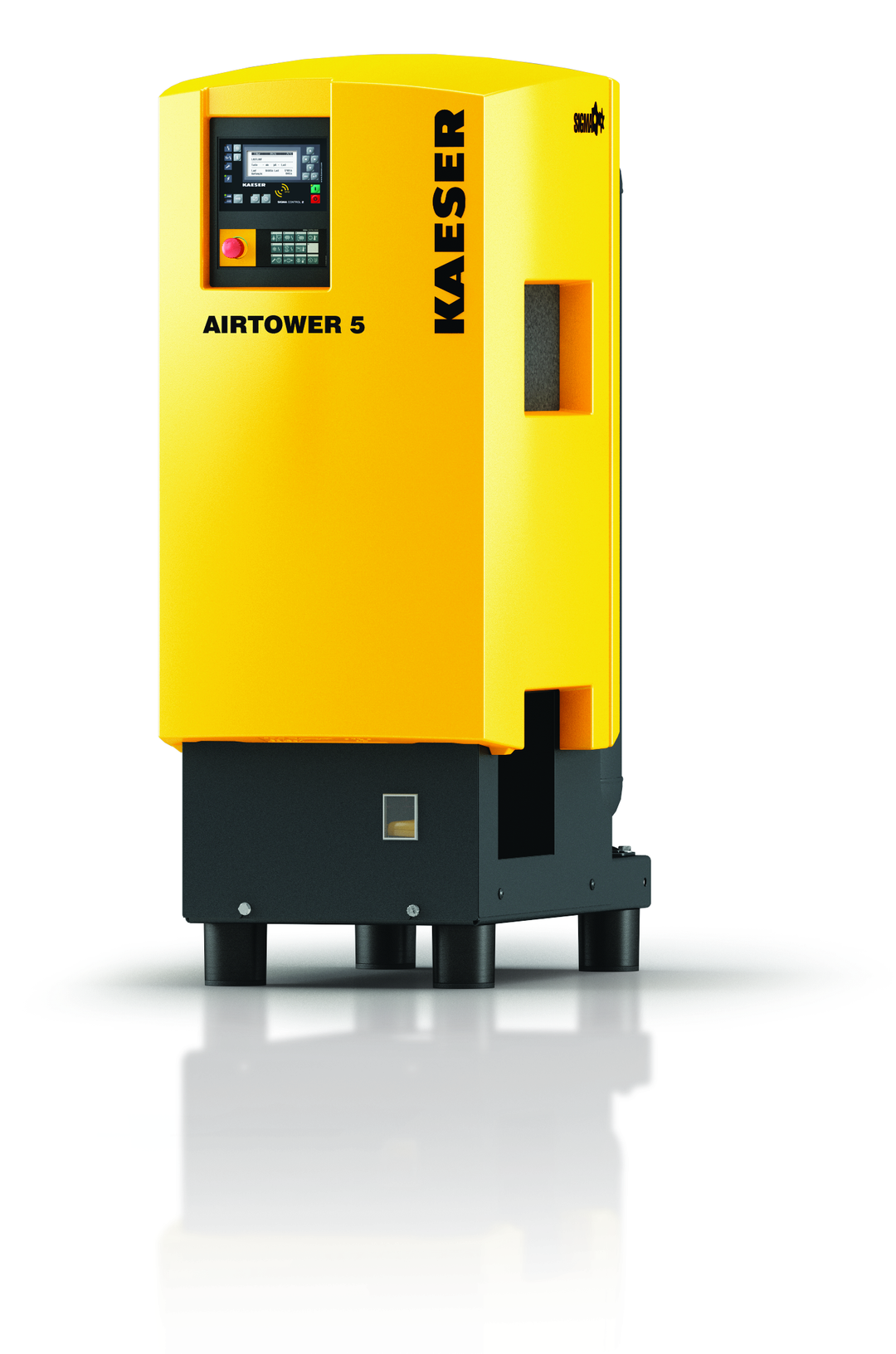

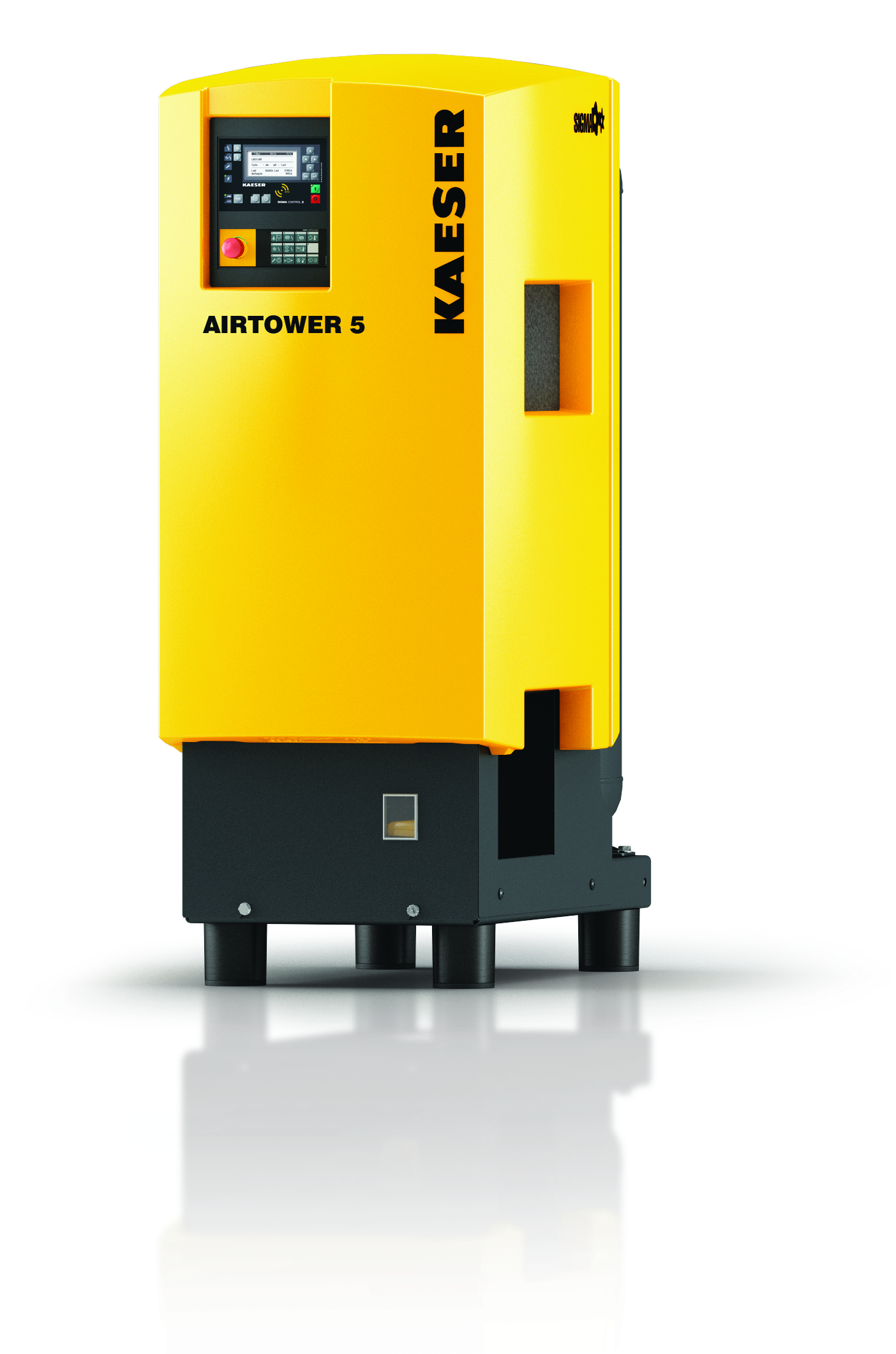

Kaeser AIRTOWER 5C
Regular price$0.00
/
- In stock, ready to ship
- Inventory on the way
CALL FOR PRICING
AIRTOWER 5C Tech Specs
Flow rate:
- 21 cfm at 125 psig
- 17 cfm at 160 psig
Nominal motor output: 5 hp
Compressed air connection: 3/4″ NPT
Sound pressure level: 70 dB(A)
Air receiver tank: 56,8 gal
Includes:
• KE (Extra Fine) low-pressure drop coalescing filter
• KCF oil/water separator
• Eco-Drain 30 electric demand drain
• Ball valve and 3″ flex hose for connection to your system
• Unit filled with full-synthetic Kaeser Premium Fluid
Additional Technical Specifications (per unit):
| Weight | 639 lbs |
|---|---|
| Dimensions | 38.625 x 24.325 x 58 in |
| Full Load Amps | 208V/3ph/60Hz – 15 230V/1ph/60Hz – 23 230V/3ph/60Hz – 15 460V/3ph/60Hz – 7.6 |
| Required disconnect fuse size | 208V/3ph/60Hz – 20 230V/1ph/60Hz – 40 230V/3ph/60Hz – 20 460V/3ph/60Hz – 10 |
| Required wire size (per phase and ground) | 208V/3ph/60Hz – 12 AWG 230V/1ph/60Hz – 8 AWG 230V/3ph/60Hz – 12 AWG 460V/3ph/60Hz – 14 AWG |
| Power | 3-phase (1-phase available with adder) |
