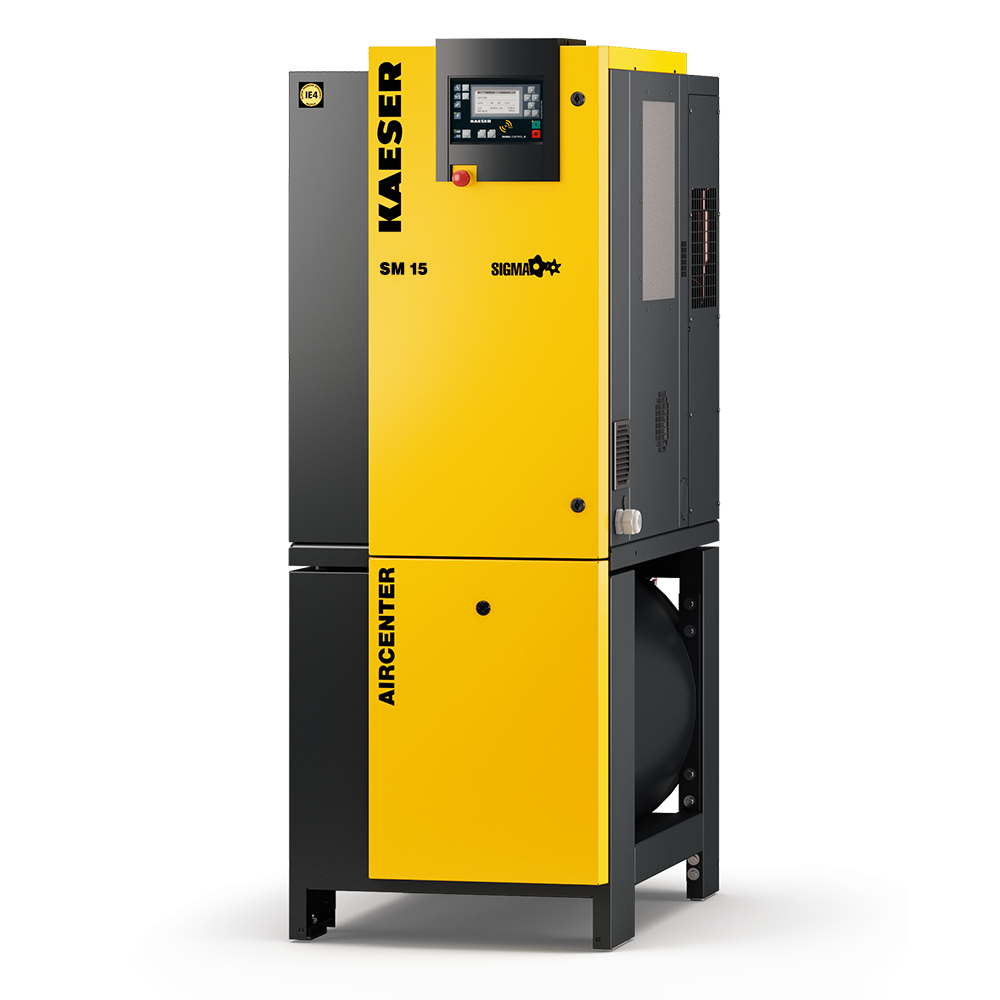

Kaeser AIRCENTER SM 15
Regular price$0.00
/
- In stock, ready to ship
- Inventory on the way
CALL FOR PRICING
Flow rate:
- 55 cfm at 125 psig
- 46 cfm at 160 psig
Nominal motor output: 15 hp
Compressed air connection: 3/4″ NPT
Sound pressure level: 68 dB(A)
Air receiver tank: 71 gal
Includes:
• KE (Extra Fine) low-pressure drop coalescing filter
• KCF oil/water separator
• Eco-Drain 30 electric demand drain
• Ball valve and 3″ flex hose for connection to your system
• Unit filled with full-synthetic Kaeser Premium Fluid
Additional Technical Specifications (per unit)
| Weight | 970 lbs |
|---|---|
| Dimensions | 24.75 x 43 x 43.25 in |
| Full Load Amps | 208V/3ph/60Hz – 48 230V/3ph/60Hz – 40 460V/3ph/60Hz – 20 |
| Required disconnect fuse size | 208V/3ph/60Hz – 50 230V/3ph/60Hz – 60 460V/3ph/60Hz – 30 |
| Required wire size (per phase and ground) | 208V/3ph/60Hz – 6 AWG 230V/3ph/60Hz – 6 AWG 460V/3ph/60Hz – 10 AWG |
| Power | 3-phase |
* Pipe sizes should be equal to or greater than the outlet of the compressor.
