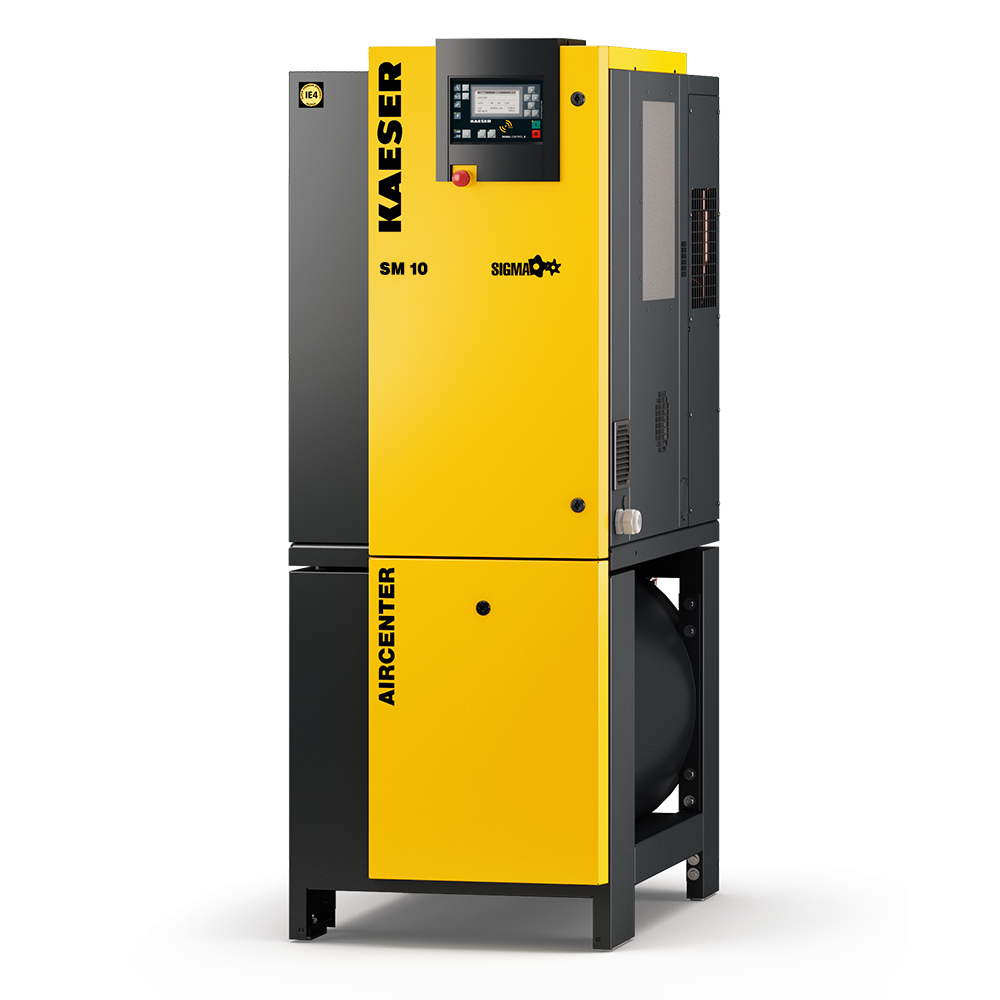

Kaeser AIRCENTER SM 10
Regular price
$0.00
Unit price
/
Unavailable
CALL FOR PRICING
Flow rate:
- 46 cfm at 125 psig
- 37 cfm at 160 psig
Nominal motor output: 10 hp
Compressed air connection: ¾” NPT
Sound pressure level: 67 dB(A)
Air receiver tank: 71 gal
Includes:
• KE (Extra Fine) low-pressure drop coalescing filter
• KCF oil/water separator
• Eco-Drain 30 electric demand drain
• Ball valve and 3′ flex hose for connection to your system
• Unit filled with full-synthetic Kaeser Premium Fluid
Additional Technical Specifications (per unit)
| Weight | 970 lbs |
|---|---|
| Dimensions | 48 × 25 × 68 in |
| Full Load Amps (230V/3ph/60Hz) | 34 Amps |
| Required disconnect fuse size (230V/3ph/60Hz) | 50 |
| Required wire size (per phase and ground) (230V/3ph/60Hz) | 8 AWG |
| Full Load Amps (460V/3ph/60Hz) | 17 Amps |
| Required disconnect fuse size (460V/3ph/60Hz) | 25 |
| Required wire size (per phase and ground) (460V/3ph/60Hz) | 10 AWG |
| Power | 3-phase |
* Pipe sizes should be equal to or greater than the outlet of the compressor.
