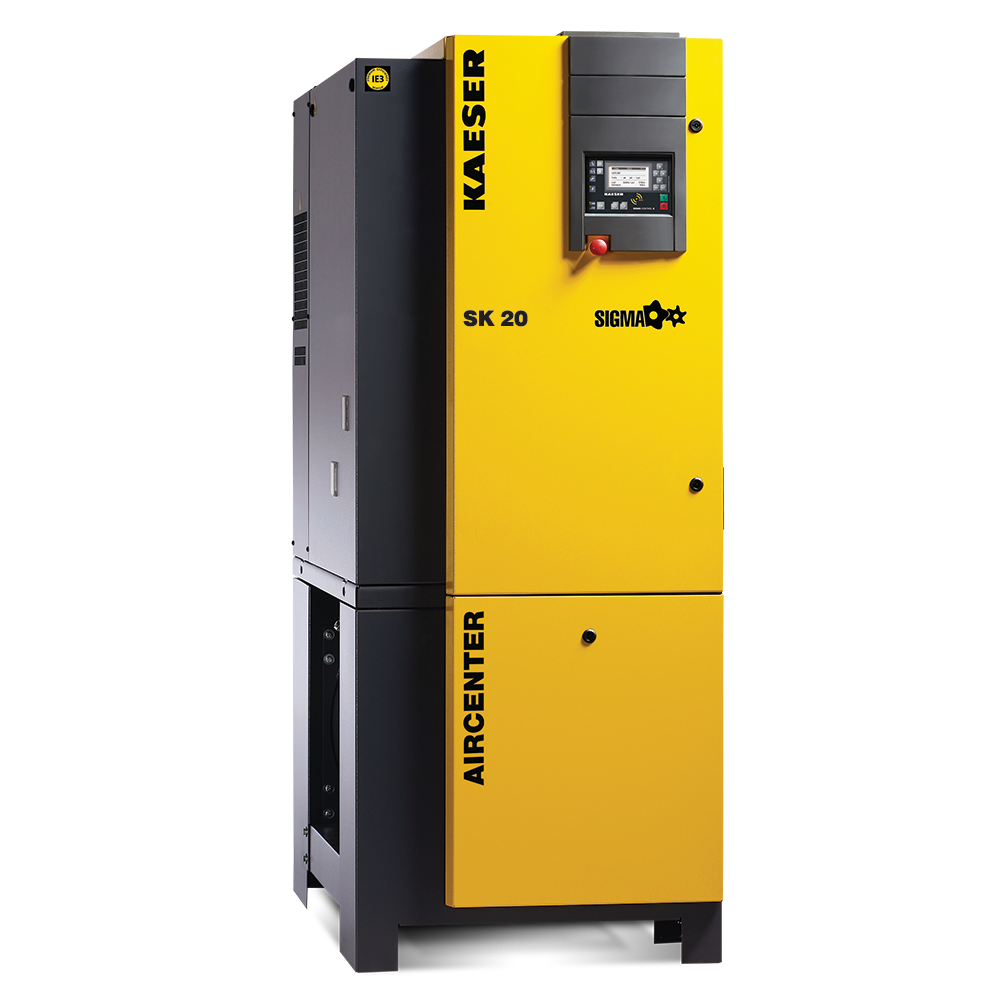

Kaeser AIRCENTER SK 20
Regular price$0.00
/
- In stock, ready to ship
- Inventory on the way
CALL FOR PRICING
Flow rate:
- 88 cfm at 125 psig
- 77 cfm at 160 psig
Nominal motor output: 20 hp
Compressed air connection: 1″ NPT
Sound pressure level: 68 dB(A)
Air receiver tank: 93 gal
Includes:
• KE (Extra Fine) low-pressure drop coalescing filter
• KCF oil/water separator
• Eco-Drain 30 electric demand drain
• Ball valve and 3″ flex hose for connection to your system
• Unit filled with full-synthetic Kaeser Premium Fluid
Additional Technical Specifications (per unit_
| Weight | 1294 lbs |
|---|---|
| Dimensions | 53 × 30 × 74 in |
| Full Load Amps (230V/3ph/60Hz) | 58 Amps |
| Required disconnect fuse size (230V/3ph/60Hz) | 80 |
| Required wire size (per phase and ground) (230V/3ph/60Hz) | 4 AWG |
| Full Load Amps (460V/3ph/60Hz) | 29 Amps |
| Required disconnect fuse size (460V/3ph/60Hz) | 40 |
| Required wire size (per phase and ground) (460V/3ph/60Hz) | 8 AWG |
| Power | 3-phase |
* Pipe sizes should be equal to or greater than the outlet of the compressor.
