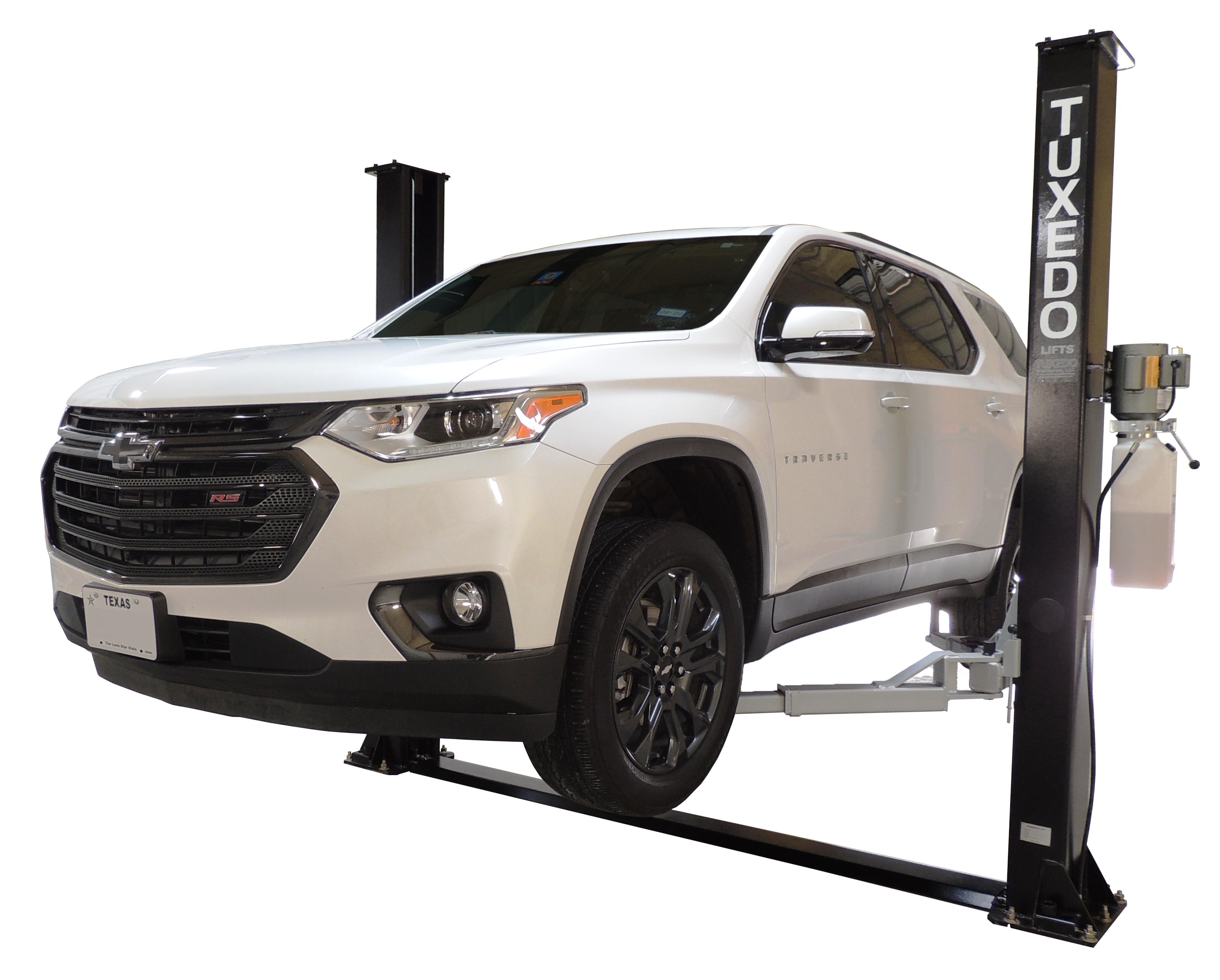

CITC Sale: Tuxedo TP9KF-TUX 2-Post Lift

$2,040.00

Features:

  • 9,000 lbs capacity
  • Symmetric Arms
  • Chain Drive Cylinders
  • Dual Point Lock Release
  • Auto Arm Restraint System
  • Low profile drop-in Lift Pads
  • SADDLE PAD ADAPTORS (1 Pair)
  • Stackable Adapters Included
  • Black color standard

Specifications:

Lift Model TP9KF-TUX
Capacity 9,000 lbs.
Height Overall 112″
Width Overall w/ Power Unit 141″
Max Lift Height 72″
Width Between Columns 110-3/8″
Min. Pad Height 4″
Drive Thru Clearance 101-11/16″
Lifting Speed   50S
Asymmetric / Symmetric Symmetric
Clear Floor / Floor Plate Floor Plate
Short Arm Reach – min/max 31″-45″
Long Arm Reach – min/max Same
Narrow Bay Setting NA
Max Load Per Arm 2,250 lbs.
Ship Weight 1,295 lbs
Power 220V – 20 AMP – 1PH
