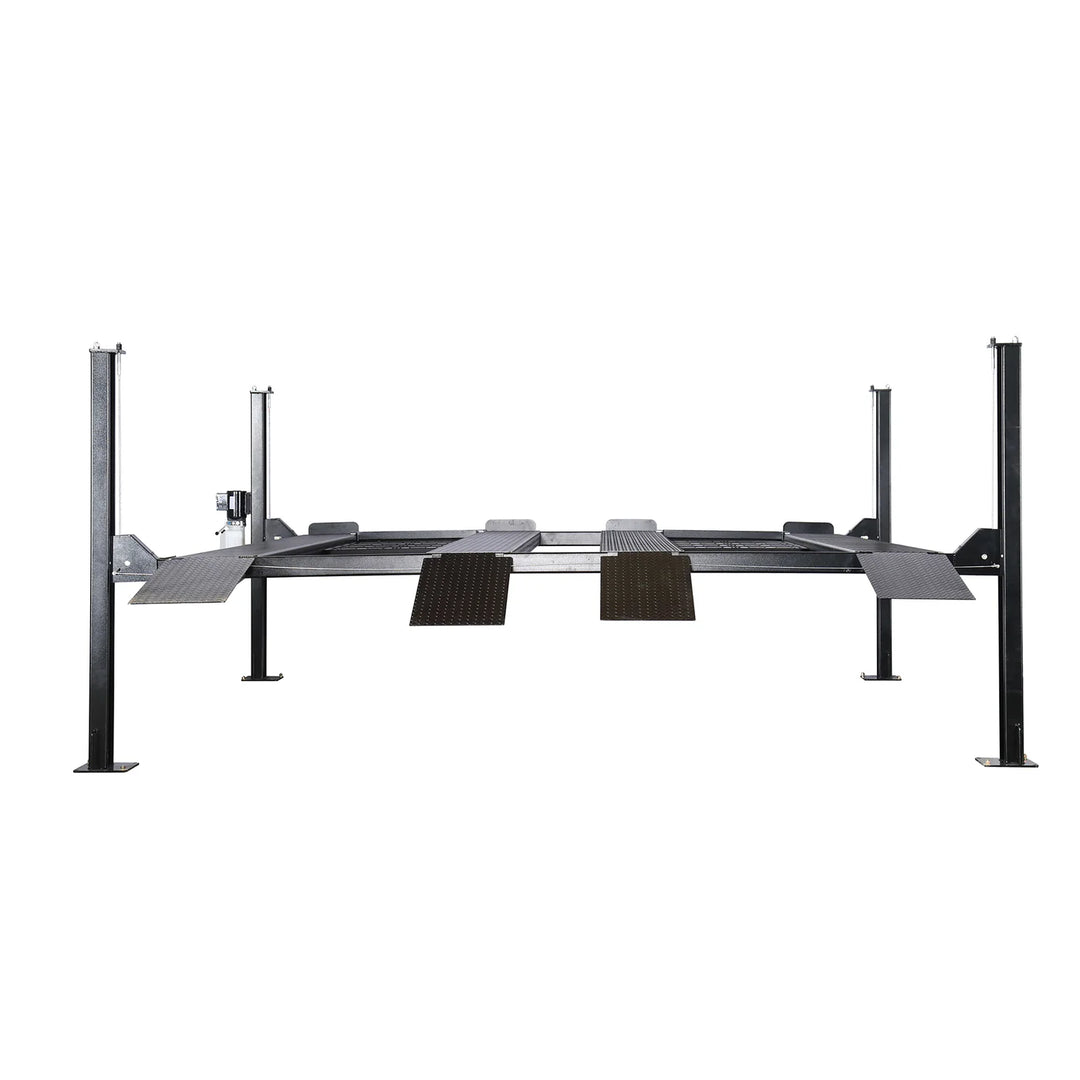

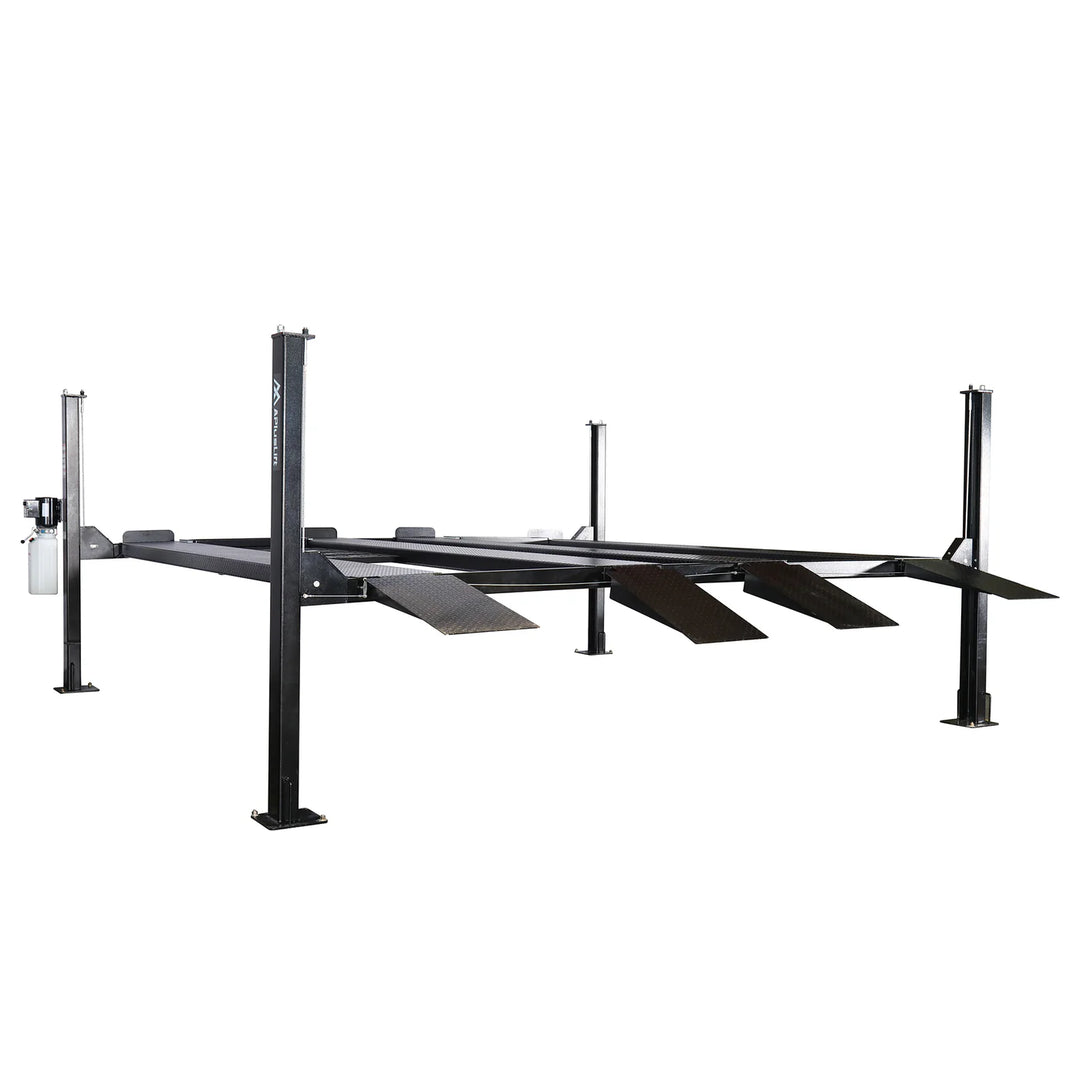

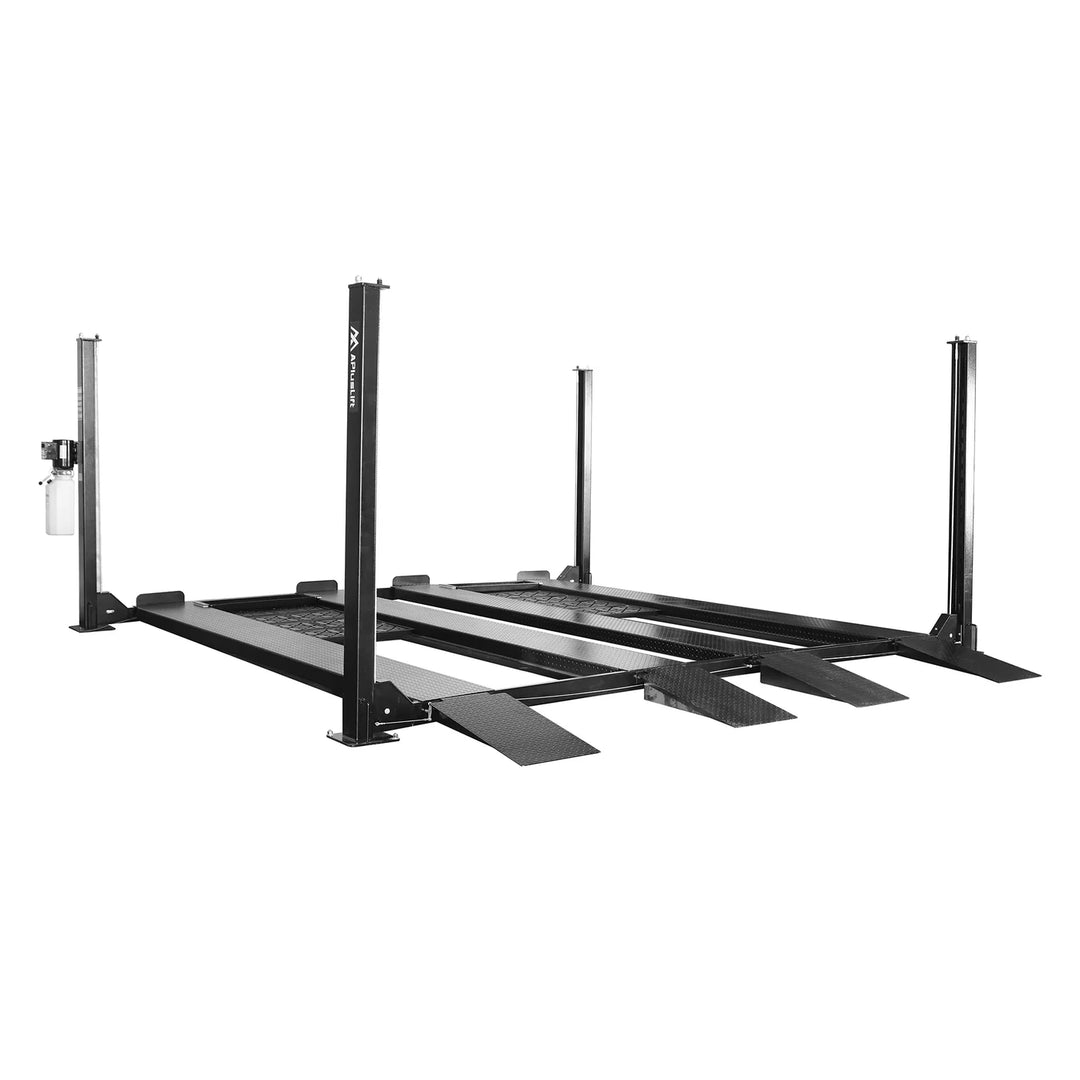

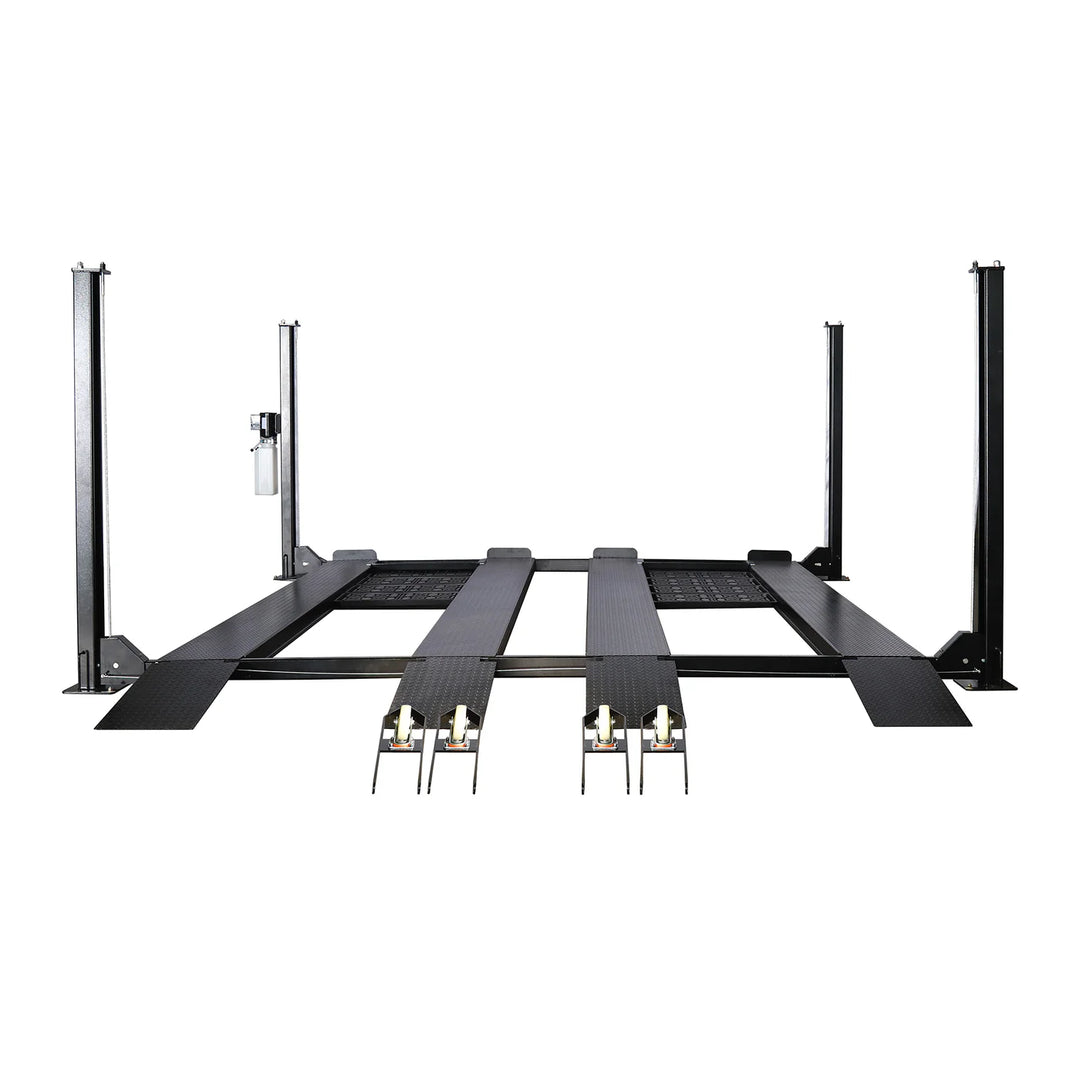

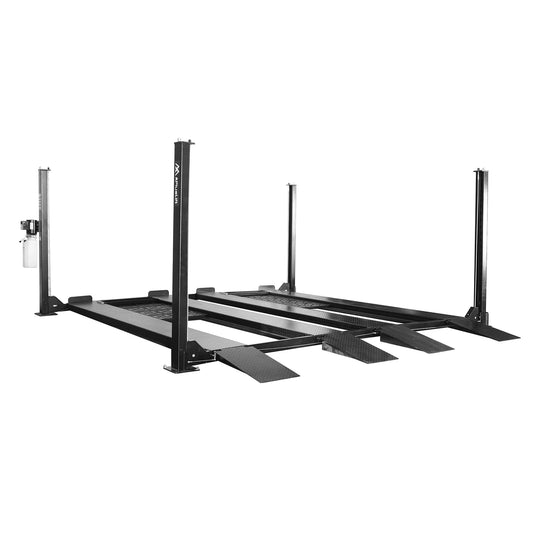

APlus HW-9KDP 4 Post Lift
Regular price
$6,050.00
Unit price
/
Unavailable
Couldn't load pickup availability
- Lifting Capacity: 9,000LB

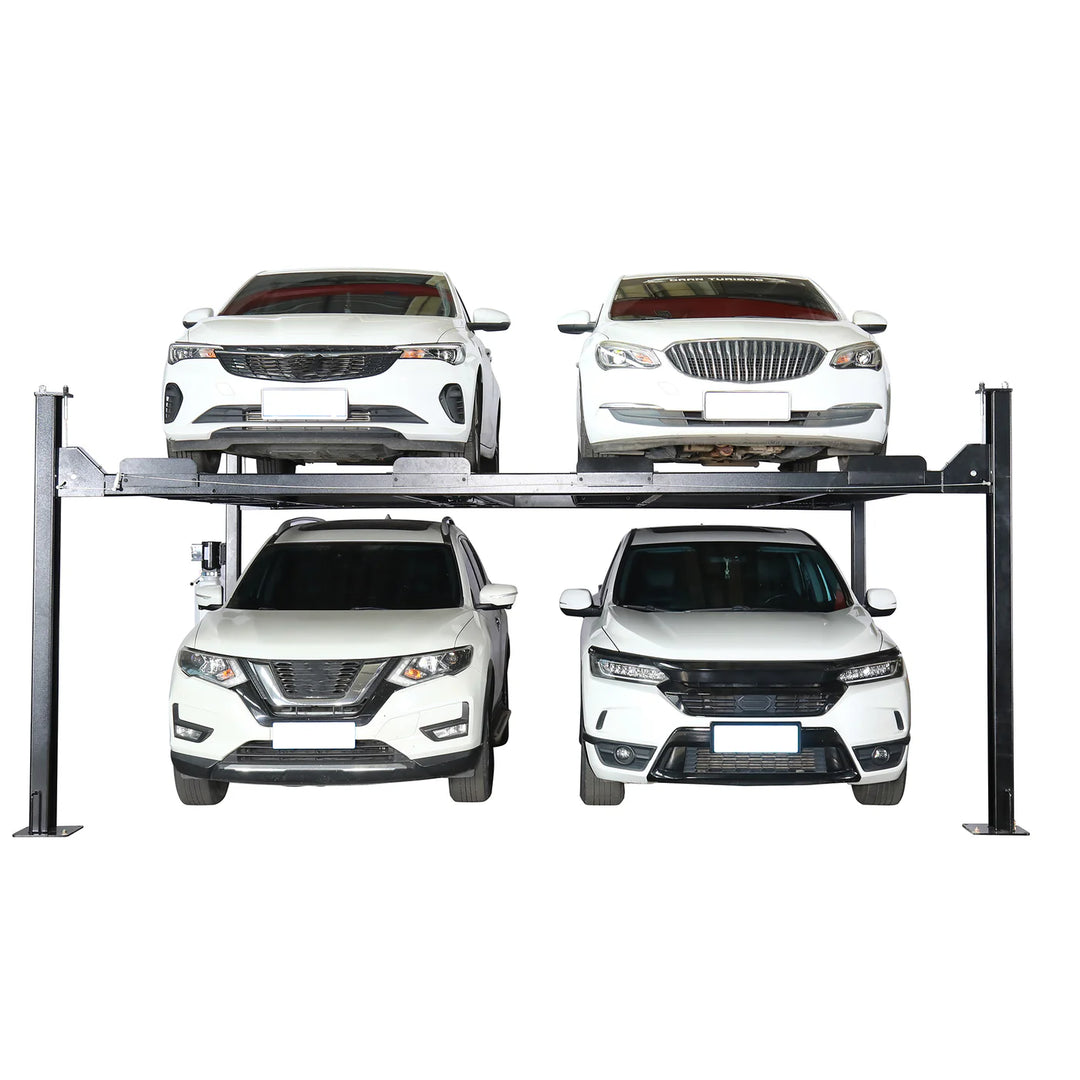

- Usage: Parking/Storage/Service
- Powder Coated Finish with Superior Corrosion Resistance
- 4 Approach Ramps Included
- Overall Length: 230" with ramp or 194" without ramp
- Overall Height: 96"
- Overall Width: 210"

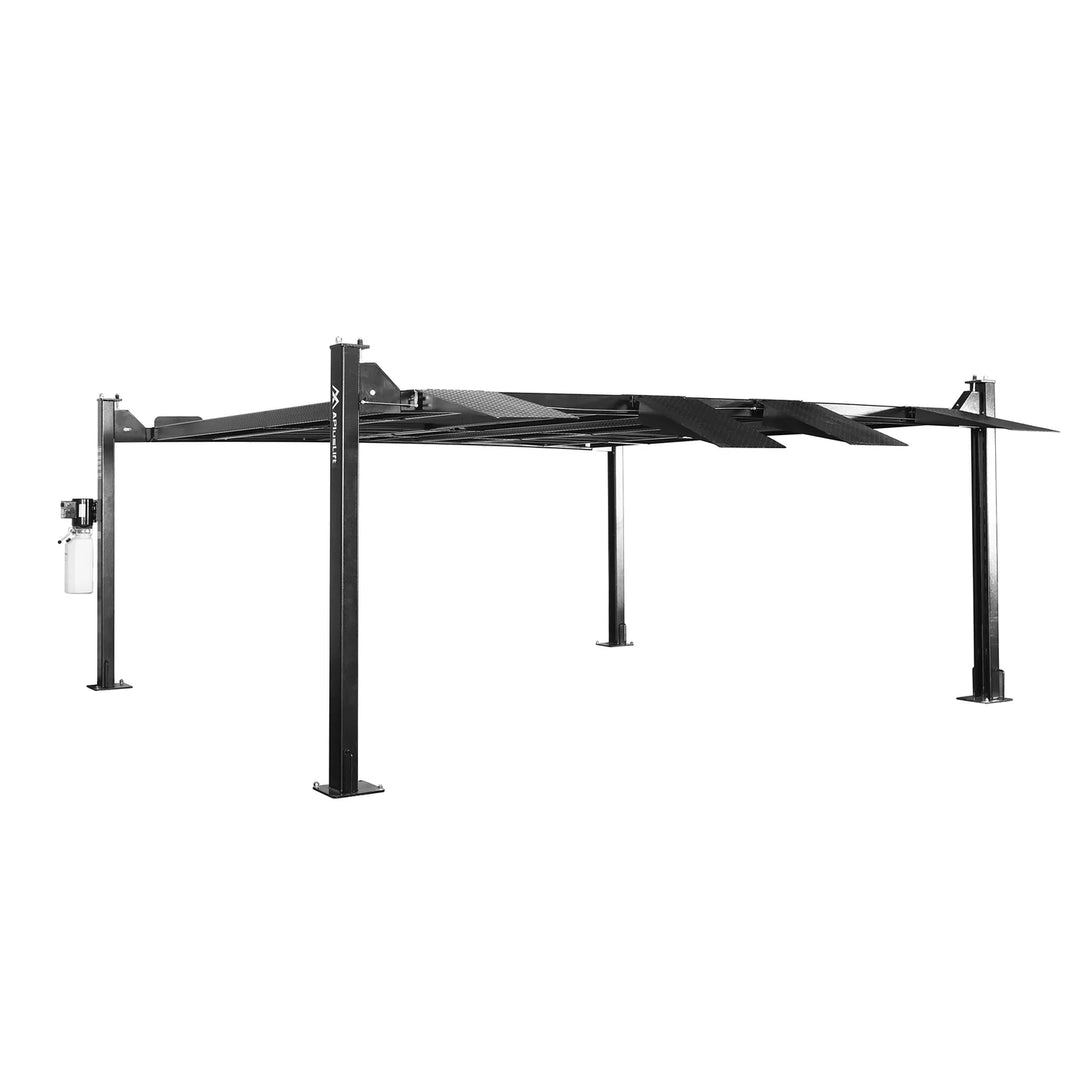

- Lifting Height: 82"
- Clearance Under Runway: 79"
- Width between Posts: 190"
- Drive Through Width: 93"x2
- Runway Size: 184"L x 19"W
- Width Between Four Runways: 37 3/8" - 19 11/16" - 37 3/8"
- Approach Ramps Size: 36"L x 19"W
- Lifting Time: 50 seconds
- Motor: 110V Single Phase 1.5HP 10A (recommend a 30A breaker)
- Hydraulic Oil: 3-5 gallons AW32/AW46 (Not Included in the Package)
- Concrete Thickness: 4" 3000psi
- Shipping Weight: 2,850LB
- Shipping package size: 210"L x 22"W x 36"H
