$4,895.00
/
  • Low stock - 2 items left
  • Inventory on the way
  • Lifting Capacity: 11,000LB
  • Usage: Parking/Storage/Service
  • Powder Coated Finish with Superior Corrosion Resistance

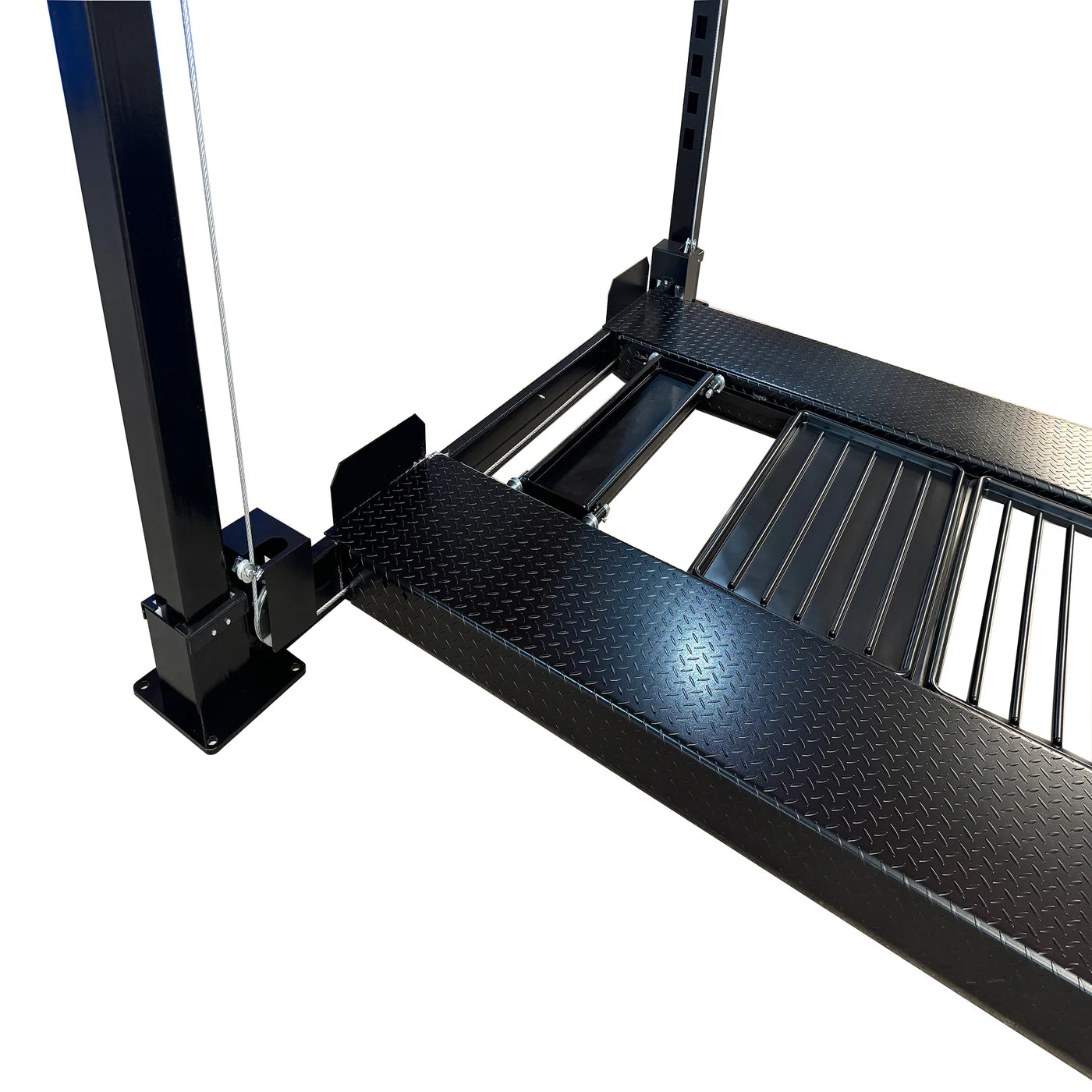

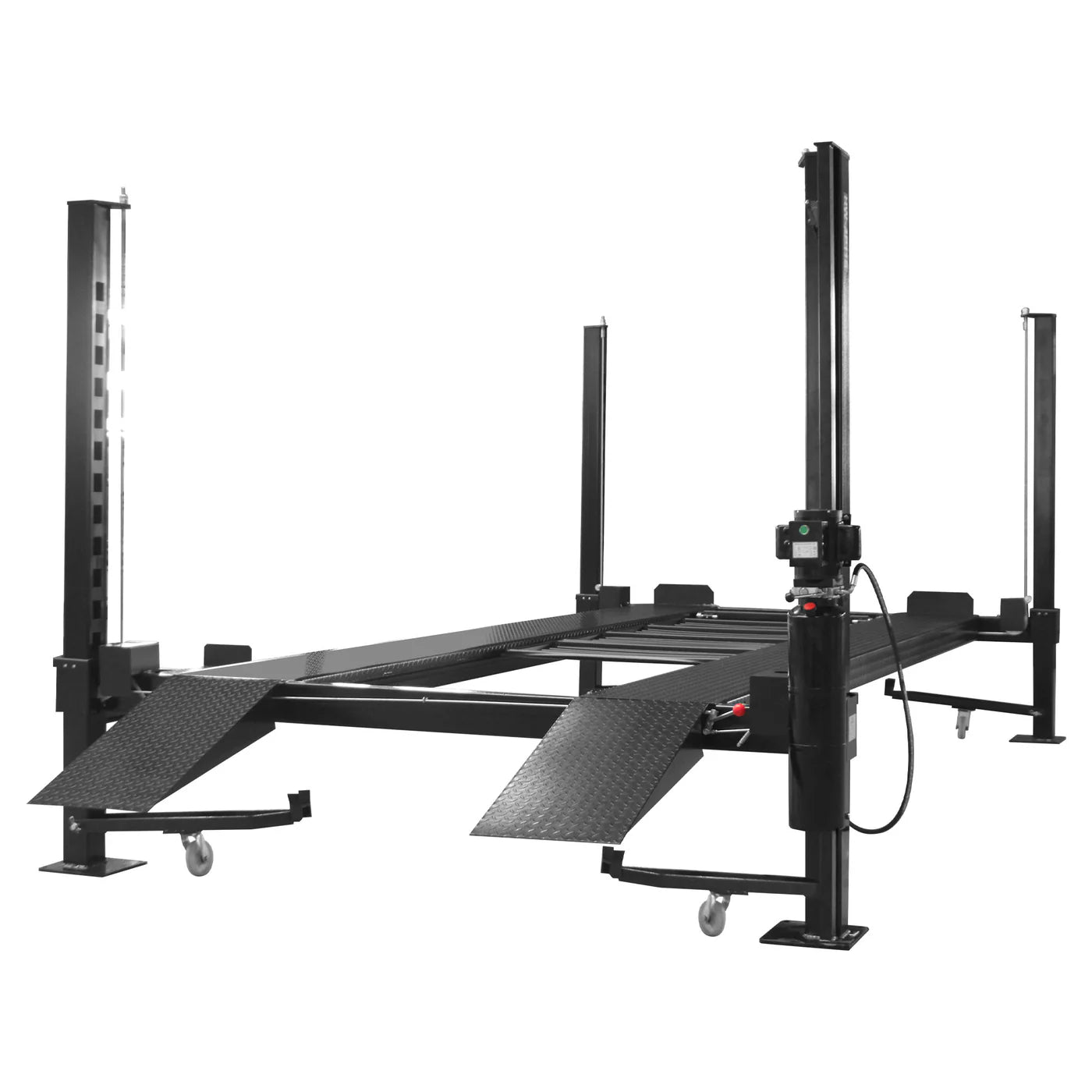

  • Caster Kit, Jack Tray, And 2 Removable Approach Ramps Included

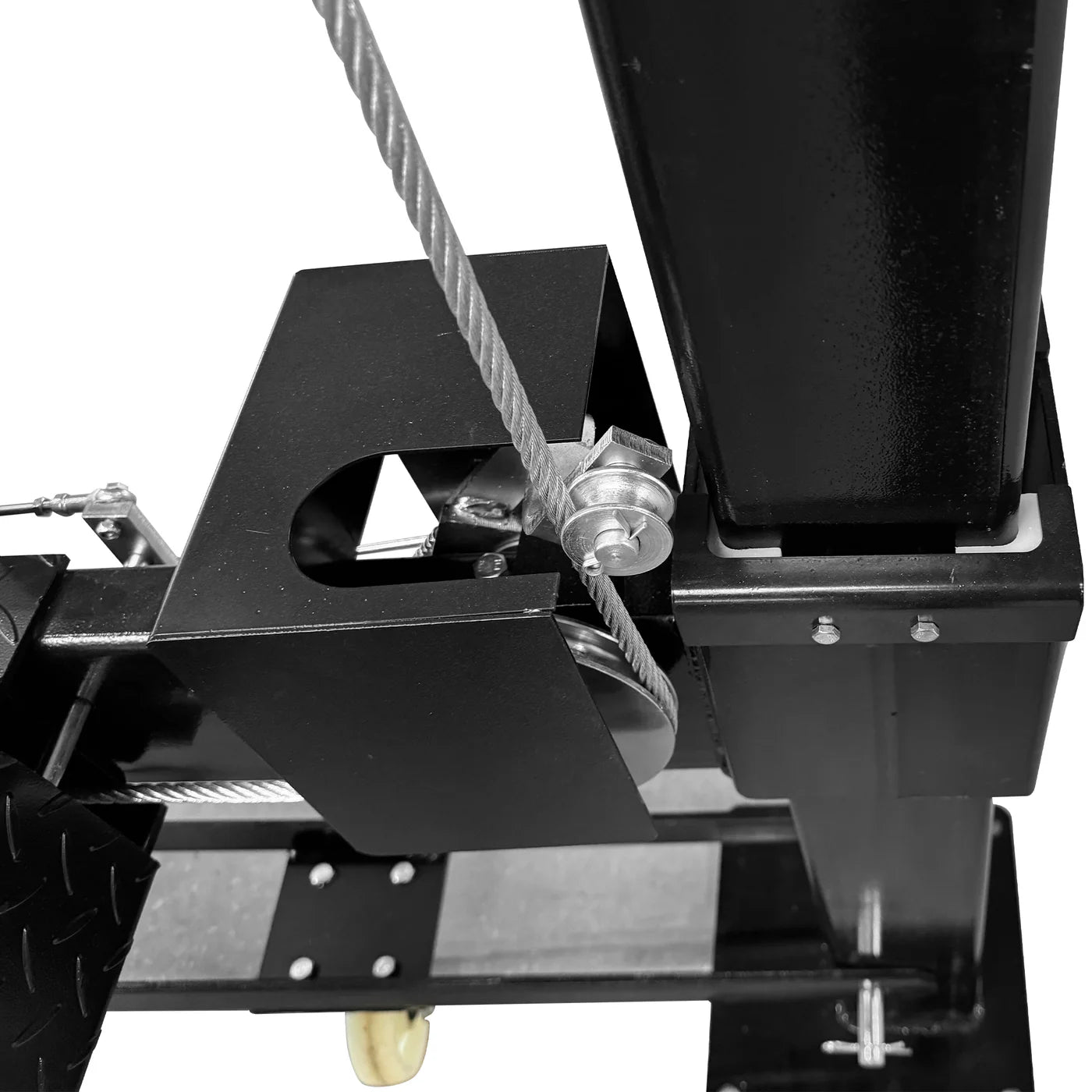

  • Heavy duty 3/8" diameter cables that reduce high stress on synchronization process and increase cable life

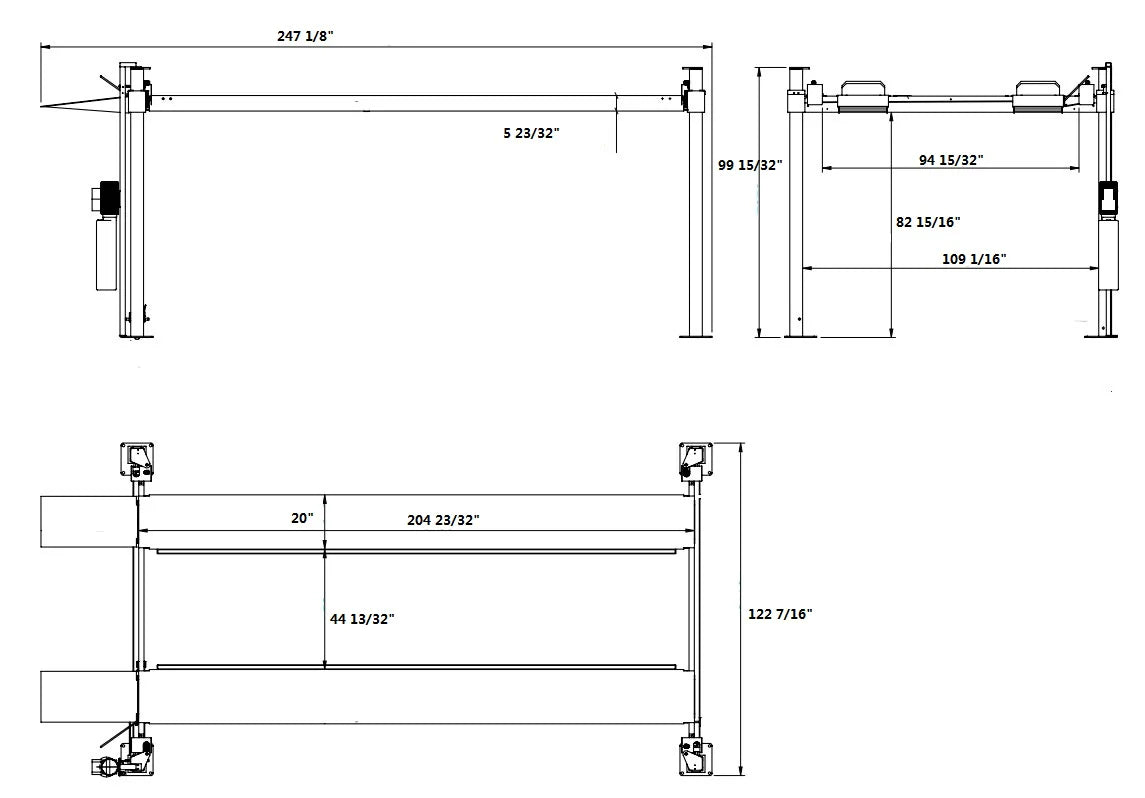

  • Overall Length: 247 1/8"
  • Overall Width: 122 7/16"
  • Overall Height: 99 15/32"
  • Lifting Height: 88 21/32"
  • Clearance Under Runway: 82 15/16"
  • Drive Through Width: 112"
  • Runway Size: 204 23/32"L x 20"W
  • Width Between Runways: 44 13/32"
  • Runway Gauge Steel: 14/64"
  • Column Cross Section: 4 23/32"Lx4 23/32"L
  • Removable Approach Ramps Size: 35 23/32"L x 18 23/32"W
  • Lock Positions: 14
  • Lifting Time: 90 seconds
  • Motor: 220V Single Phase 3HP 10A (recommend a 30A breaker)
  • Hydraulic Oil: 4.3-5 gallons AW32/AW46 (Not Included)
  • Concrete Thickness: 4"
  • Shipping Weight: 2,500LB
  • Shipping package size: 210"L x 22"W x 34"H
