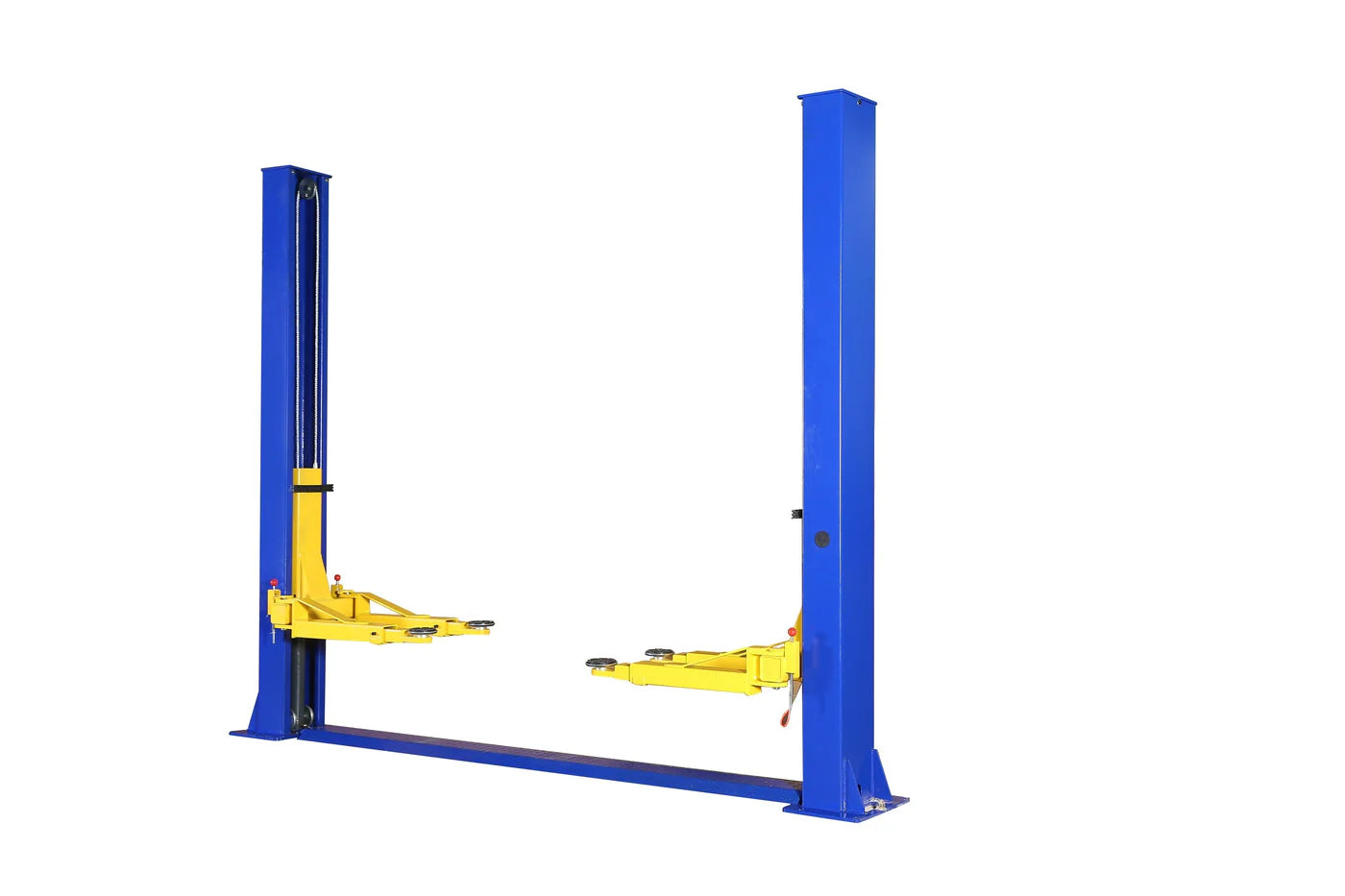

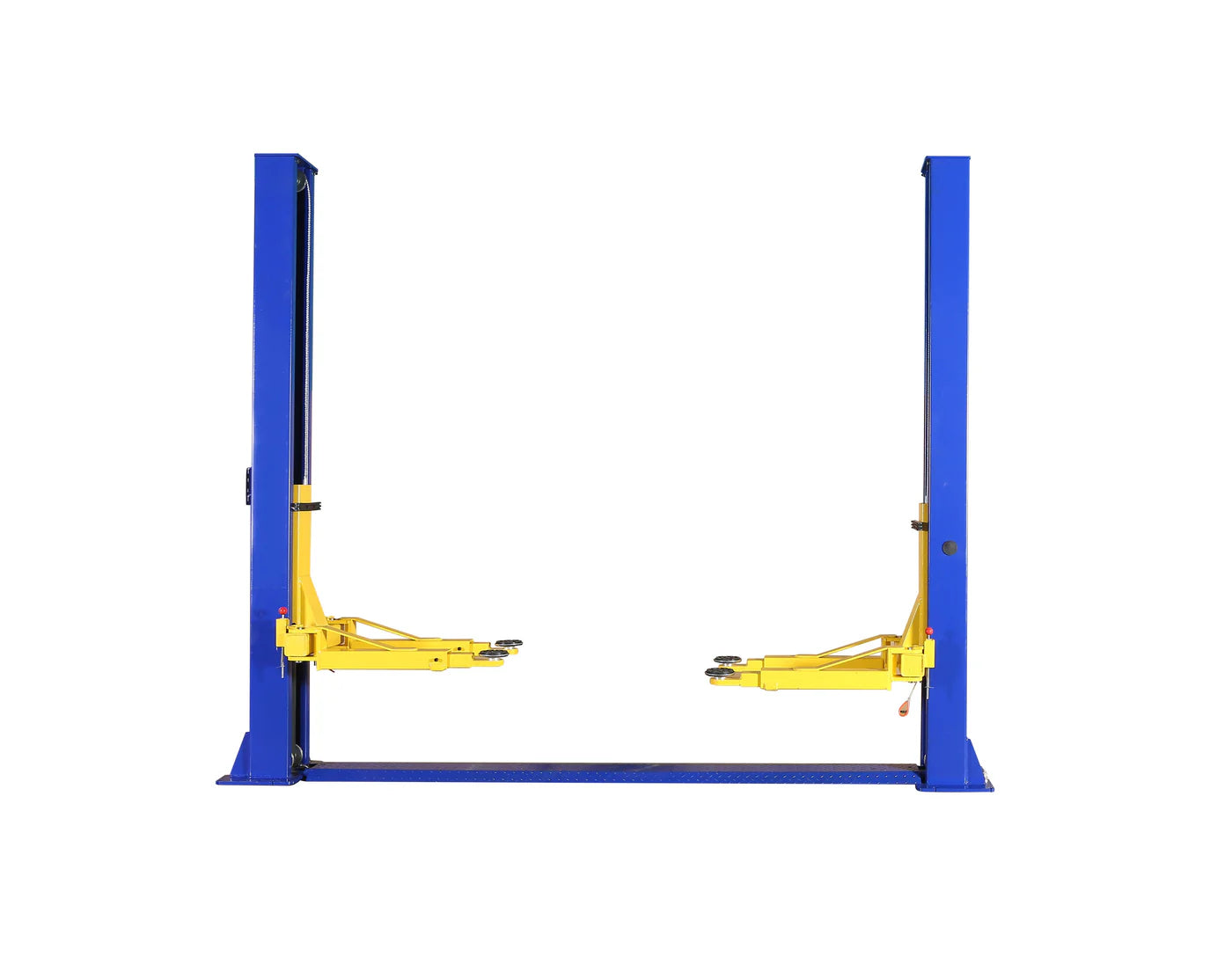

APlus HW-9KFL 2 Post Lift
APlus HW-9KFL 2 Post Lift
APlus HW-9KFL 2 Post Lift
APlus HW-9KFL 2 Post Lift
APlus HW-9KFL 2 Post Lift
APlus HW-9KFL 2 Post Lift
APlus HW-9KFL 2 Post Lift
APlus HW-9KFL 2 Post Lift
APlus HW-9KFL 2 Post Lift
APlus HW-9KFL 2 Post Lift
APlus HW-9KFL 2 Post Lift
APlus HW-9KFL 2 Post Lift
APlus HW-9KFL 2 Post Lift
APlus HW-9KFL 2 Post Lift
APlus HW-9KFL 2 Post Lift
APlus HW-9KFL 2 Post Lift
APlus HW-9KFL 2 Post Lift
APlus HW-9KFL 2 Post Lift
APlus HW-9KFL 2 Post Lift
APlus HW-9KFL 2 Post Lift

APlus HW-9KFL 2 Post Lift

$2,149.00
/
  • Low stock - 2 items left
  • Inventory on the way

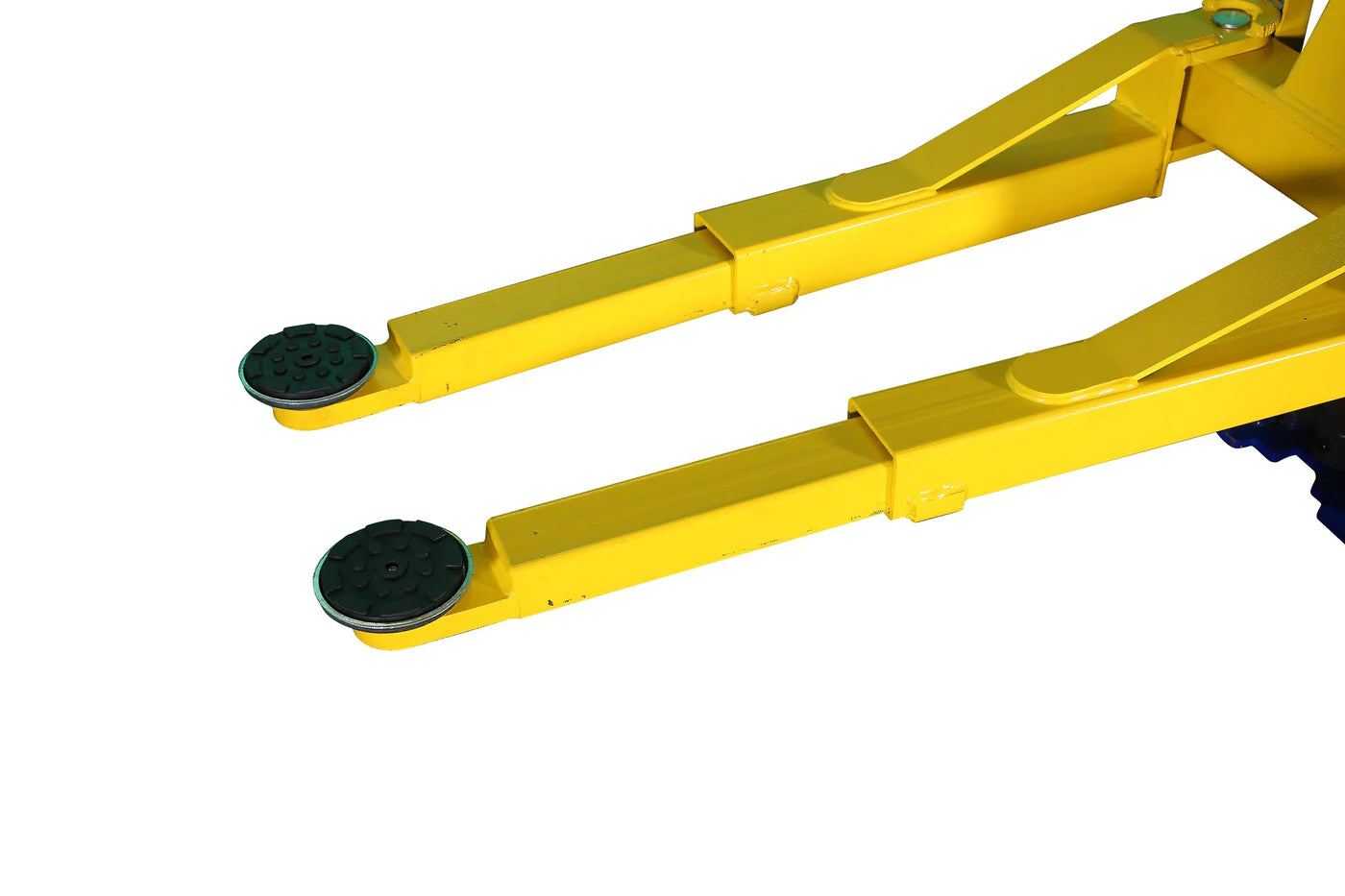

  • Straight Front / Rear 2 Stage reach from 30 1/8" to 45 3/8"
  • Equal length of front and rear arm design

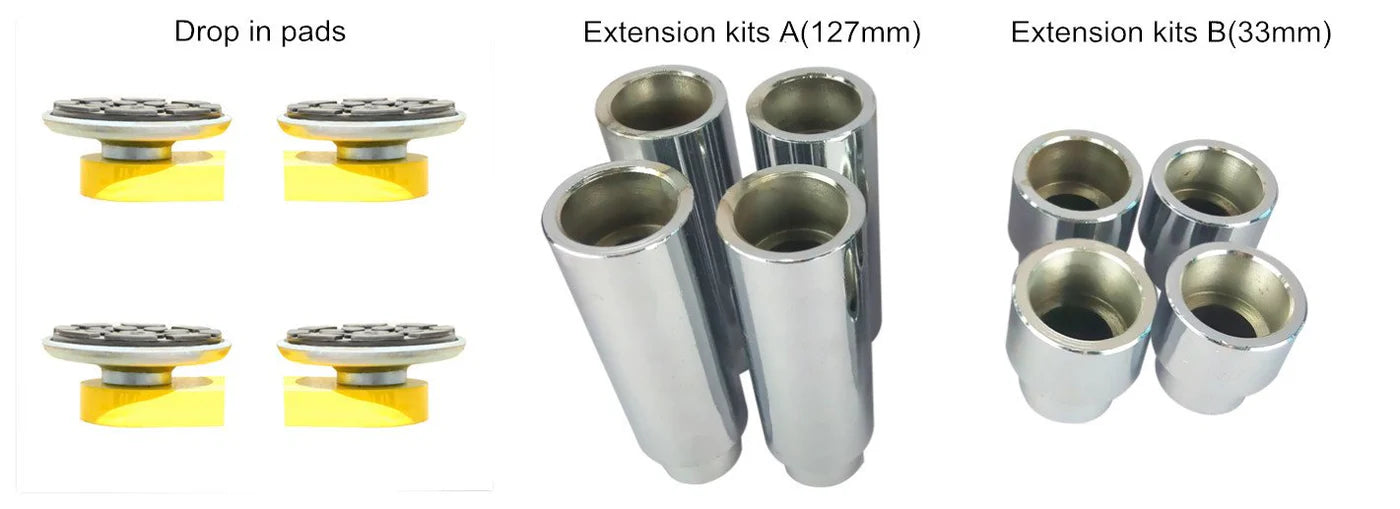

  • Drop-in type lifting pads and truck adapters included
  • Double point safety lock release

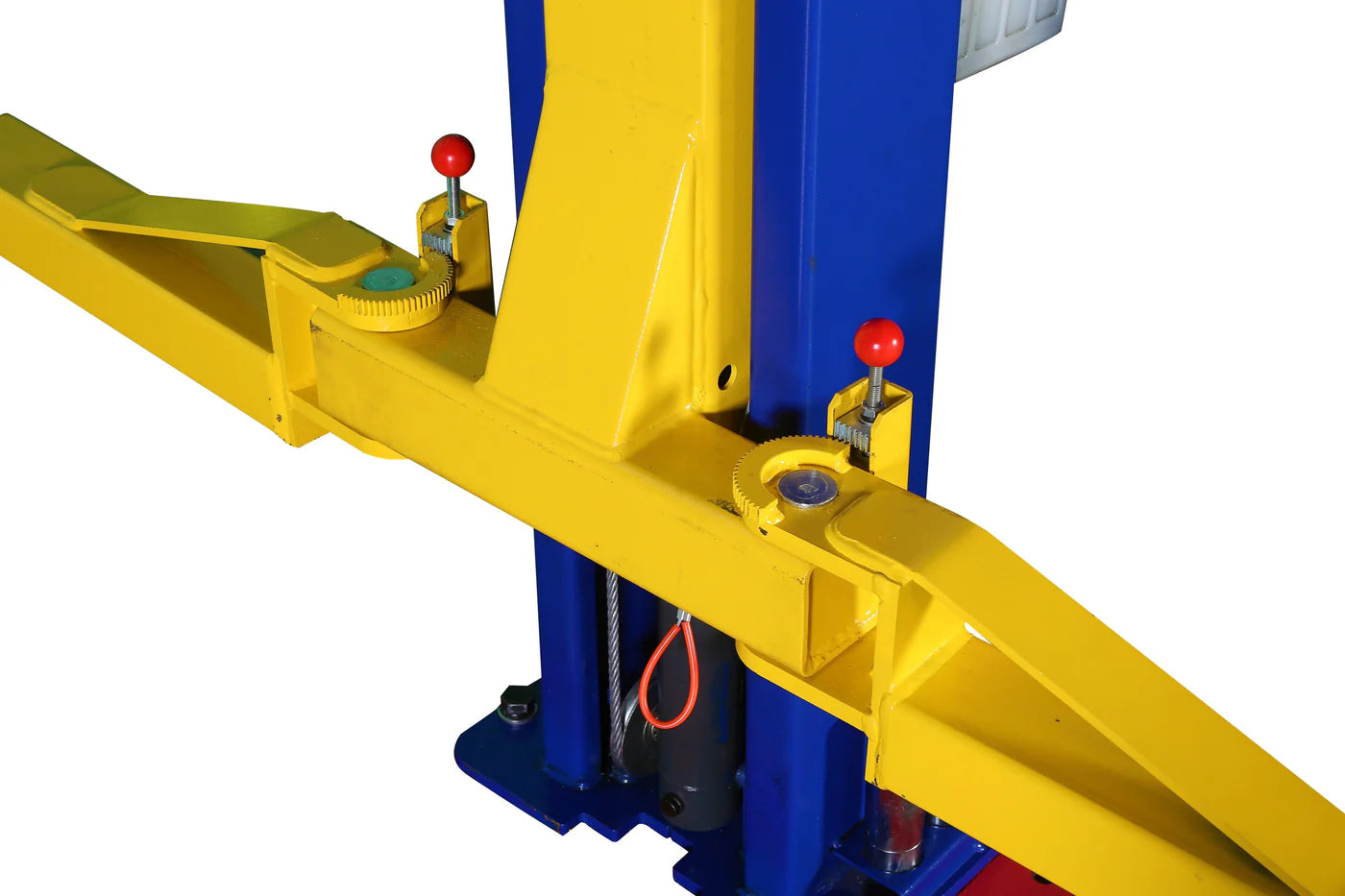

  • Automatic arm lock restraints
  • Relief valve built in power pump to prevent overloading
  • Door guards protection rubber
  • Up-limit switch to protect cylinders working stroke used in safe length scope
  • Heavy duty 3/10" diameter cable and 4 1/5" pulley that reduce high stress on synchronization process and increase cable life
  • Upgraded Floor Plate, Beveled Diamond Plate Steel 5/32" with Supporting Bracket.
  • Stiffened base plate 5/8" thickness

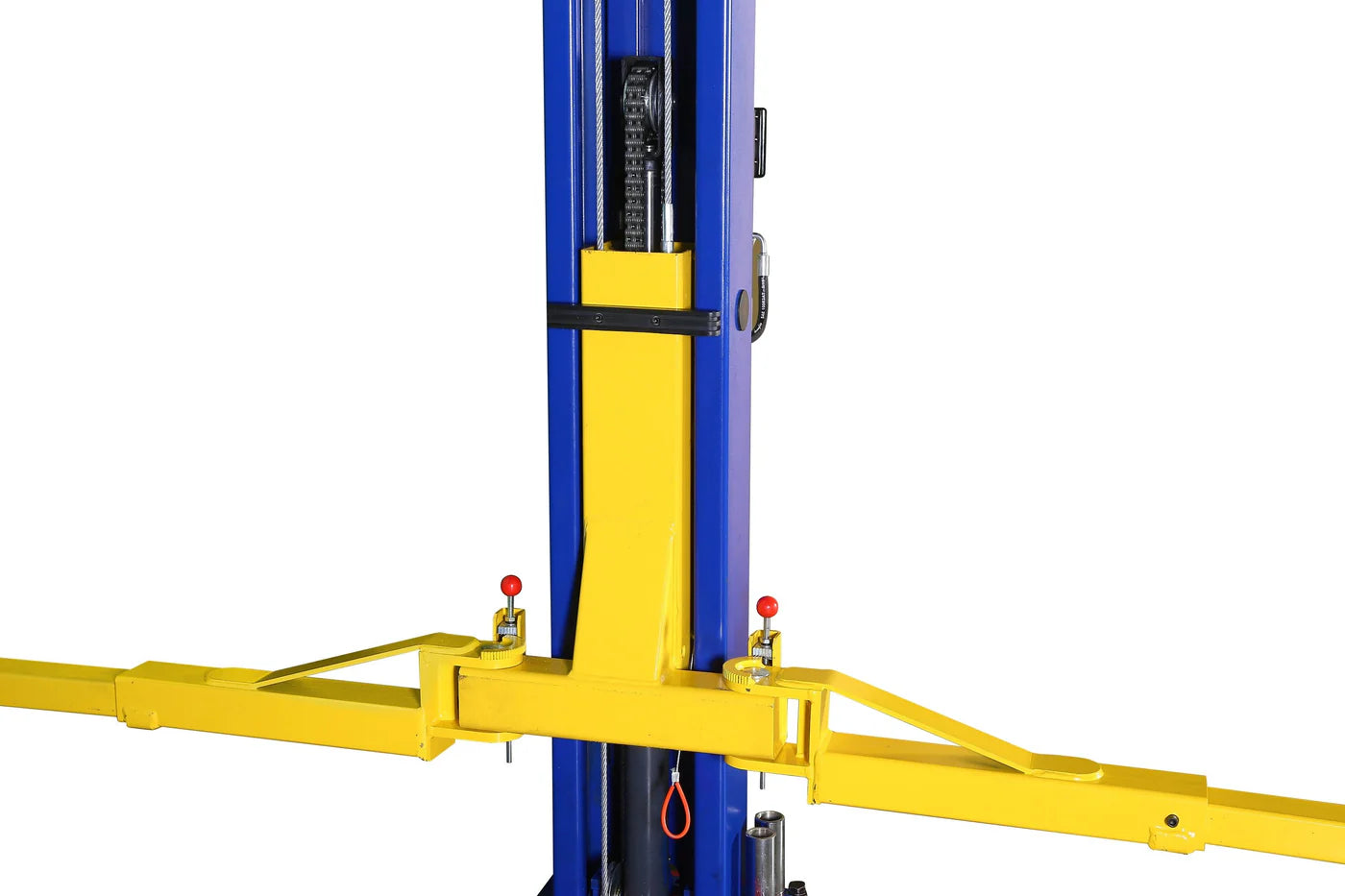

  • Ultra high molecular self lubricating nylon slider that ensures carriage smooth moving up and down
  • Lifting operation by pressing "UP" button on motor
  • Manual lowering operation by pressing lever

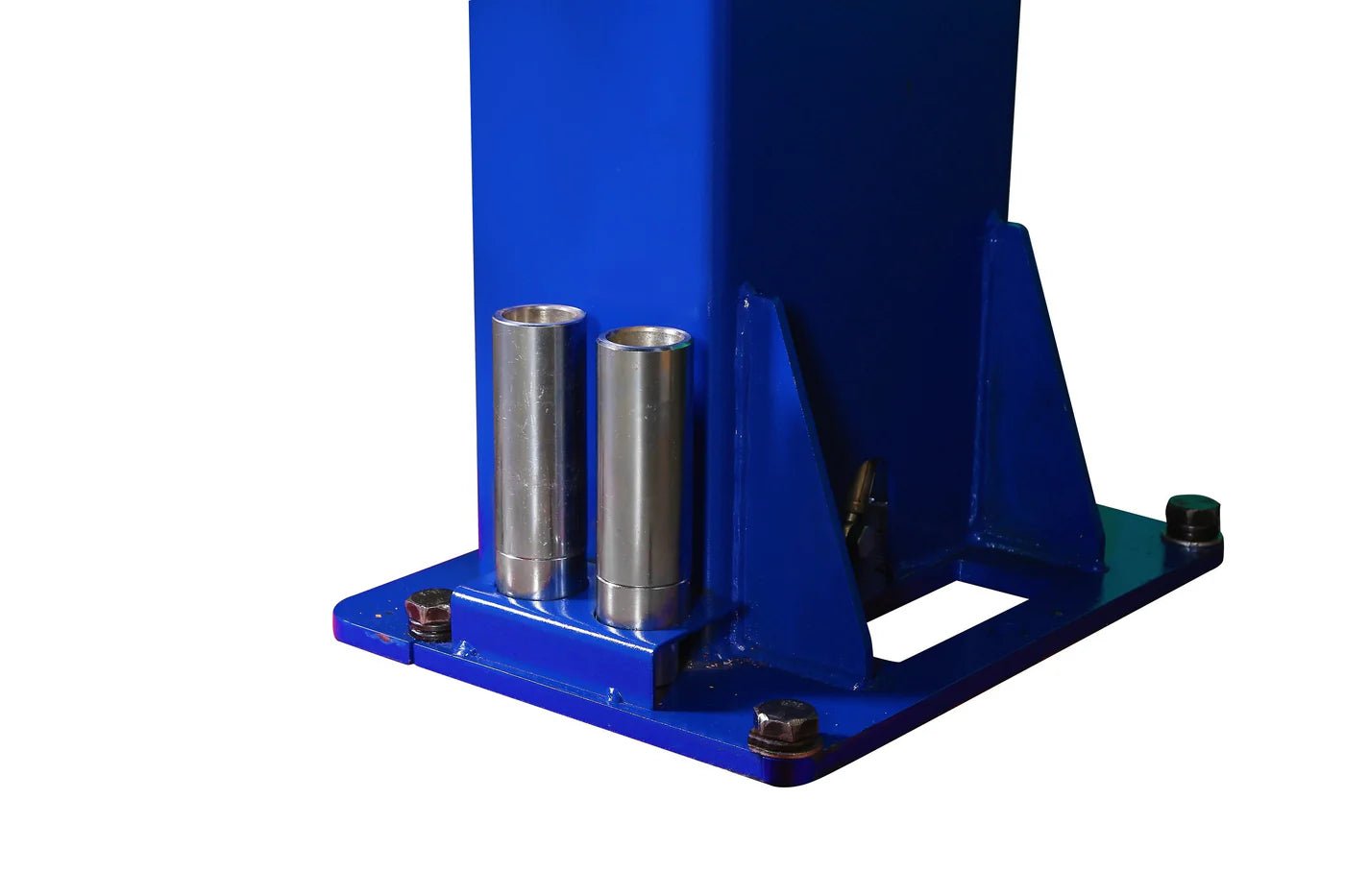

  • 2 sets of truck adapters (height extensions) included
  • Lifting Capacity: 9,000 LB
  • Overall Height: 113 5/8"
  • Overall Width: 134 3/16"
  • Lifting Height without Truck Adapters: 75"
  • Lifting Height with Truck Adapters: 81"
  • Minimum Height of Arm Top: 4"
  • Carriage to Carriage Width (Drive-through clearance): 100"
  • Column to Column Width: 109"

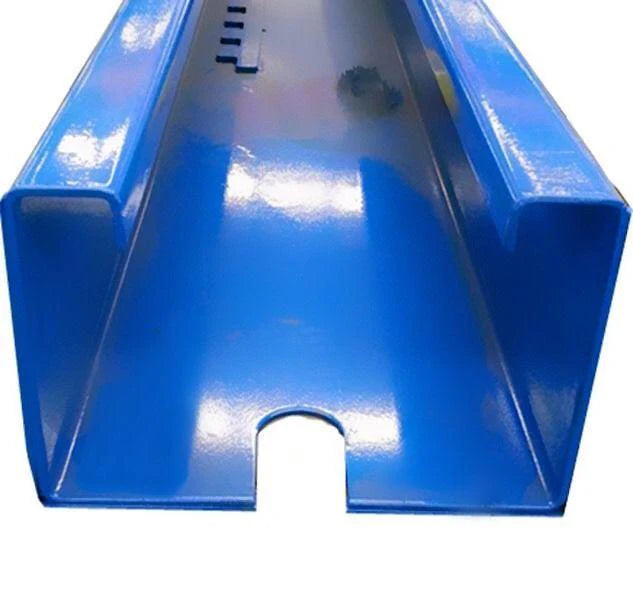

  • Column Cross Section: 11"L x 7"W
  • Floor Plate Size: 10 5/8"W x 1 7/8"H
  • Driving Mode: Dual hydraulic cylinders, chain drive

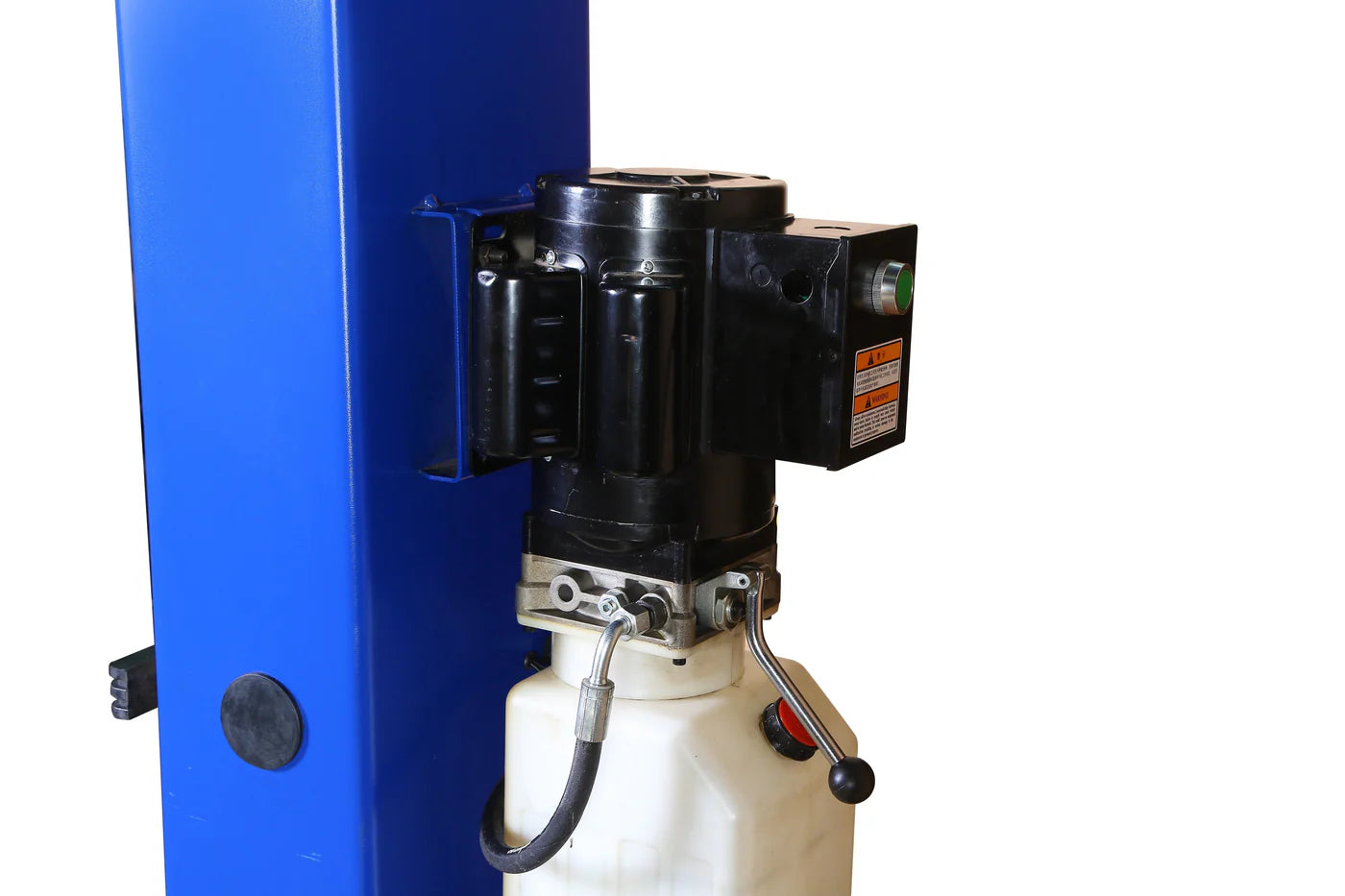

  • Motor: 220V Single Phase 3HP 10A (recommend a 30A breaker)
  • Hydraulic Oil: 3-5 gallons AW32/AW46 (Not Included in the Package)
  • Time to full rise: 50 seconds
  • Concrete Requirement: 4" at 3500psi reinforced with fiberglass or steel
  • Anchor bolts/mounting hardware included
  • Shipping Weight: 1,200 LB
  • Shipping package size: 113"L x 22"W x 40"H
