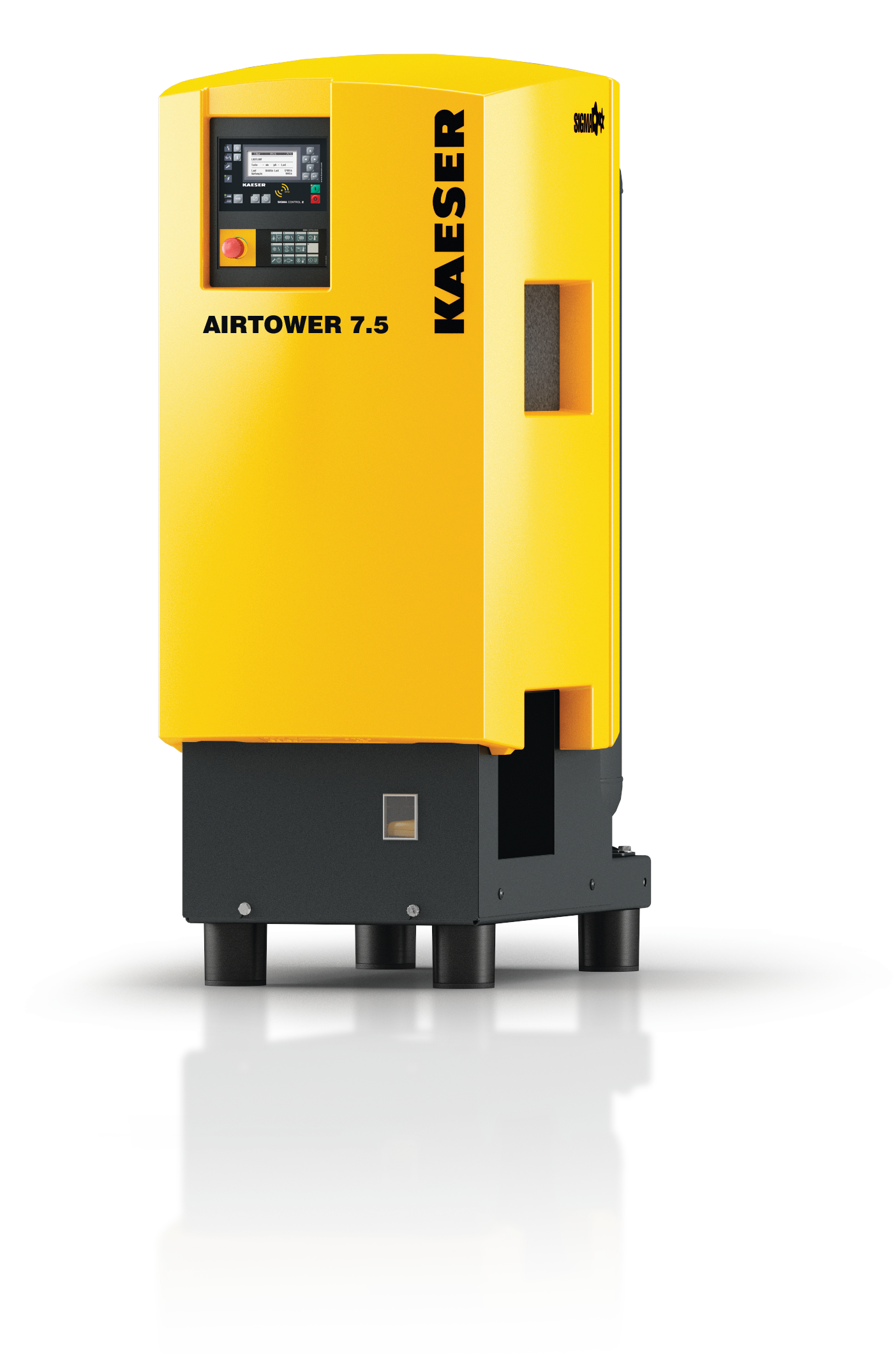

Kaeser AIRTOWER 7.5C
Regular price$0.00
/
- In stock, ready to ship
- Inventory on the way
CALL FOR PRICING
Flow rate:
- 28 cfm at 125 psig
- 24 cfm at 160 psig
Nominal motor output: 7.5 hp
Sound pressure level: 70 dB(A)
Air receiver tank: 56.8 gal
Includes:
• KE (Extra Fine) low-pressure drop coalescing filter
• KCF oil/water separator
• Eco-Drain 30 electric demand drain
• Ball valve and 3″ flex hose for connection to your system
• Unit filled with full-synthetic Kaeser Premium Fluid
Additional Technical Specifications (per unit)
| Weight | 661 lbs |
|---|---|
| Dimensions | 24.325 x 38.625 x 58 in |
| Full Load Amps | 208V/3ph/60Hz – 20 230V/1ph/60Hz – 30 230V/3ph/60Hz – 19 460V/3ph/60Hz – 9.4 |
| Required disconnect fuse size | 208V/3ph/60Hz – 30 230V/1ph/60Hz – 50 230V/3ph/60Hz – 25 460V/3ph/60Hz – 15 |
| Required wire size (per phase and ground) | 208V/3ph/60Hz – 10 AWG 230V/1ph/60Hz – 6 AWG 230V/3ph/60Hz – 10 AWG 460V/3ph/60Hz – 14 AWG |
| Power | 3-phase (1-phase available with adder) |
* Pipe sizes should be equal to or greater than the outlet of the compressor.
